dsh-stats-hud

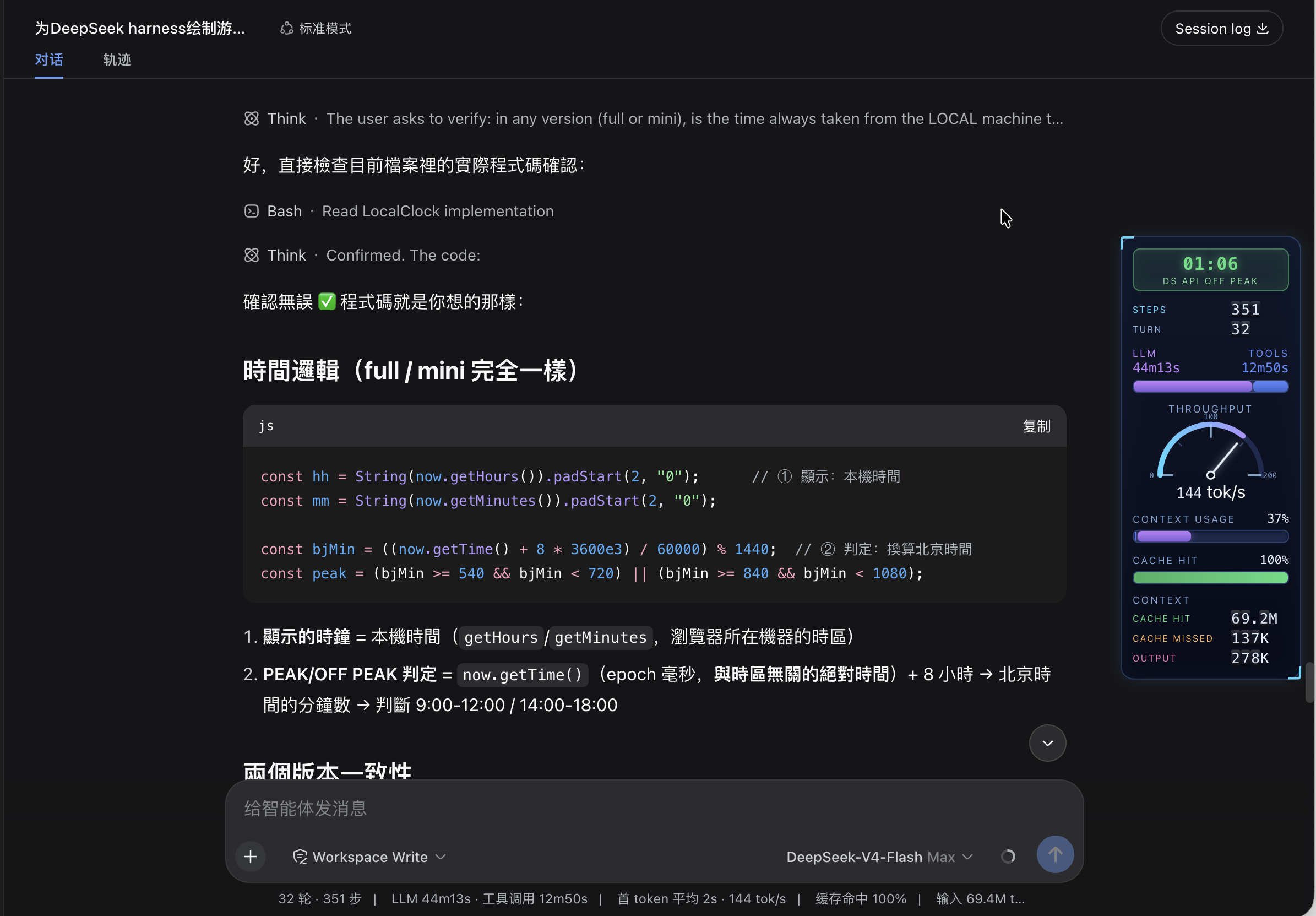

A sci-fi HUD for DeepSeek Harness: the session's stats become game-style level bars in a vertical column fixed to the far right edge of the web UI — without touching the original stats line.

Instruments (all-English, LLM terminology)

Instrument	Data	Full scale	Past full scale
CLOCK badge	Local time (24h) + DS API PEAK / DS API OFF PEAK rate	Peak = Beijing 09:00-12:00 / 14:00-18:00 (auto-converted from local time)	PEAK orange tint, OFF-PEAK green tint
STEPS / TURN rolling rows	Steps / turns as odometer drums (like the CONTEXT rows)	—	Drums spin up on mount, roll on change
LLM / TOOLS dual bar	Two columns (labels over values), bar segments = raw LLM:TOOLS time ratio	No cap — 2:1 time means 2:1 bar	—
THROUGHPUT gauge	tokens/s (throughput), centered title, combined centered readout (146 tok/s)	Redline auto-scales 200→300→400… (arc ticks follow)	—
CONTEXT USAGE bar	Context-window usage % with 3 segments: Sys Prompt (gray) / Tools (blue) / Messages (purple) by token ratio	0-100%	≥80% whole bar turns solid red; hover shows the three token counts
CACHE HIT bar	Cache-hit %	0-100%	<50% red, <80% yellow, ≥80% green
CONTEXT rolling counter	Three odometer rows: CACHE HIT (green) / CACHE MISSED (orange) / OUTPUT (pink)	Drums spin up from 0 on mount; digits roll up on increase (carry 9→0), down on decrease	—

While the agent is running the whole panel breathes and bars pulse.

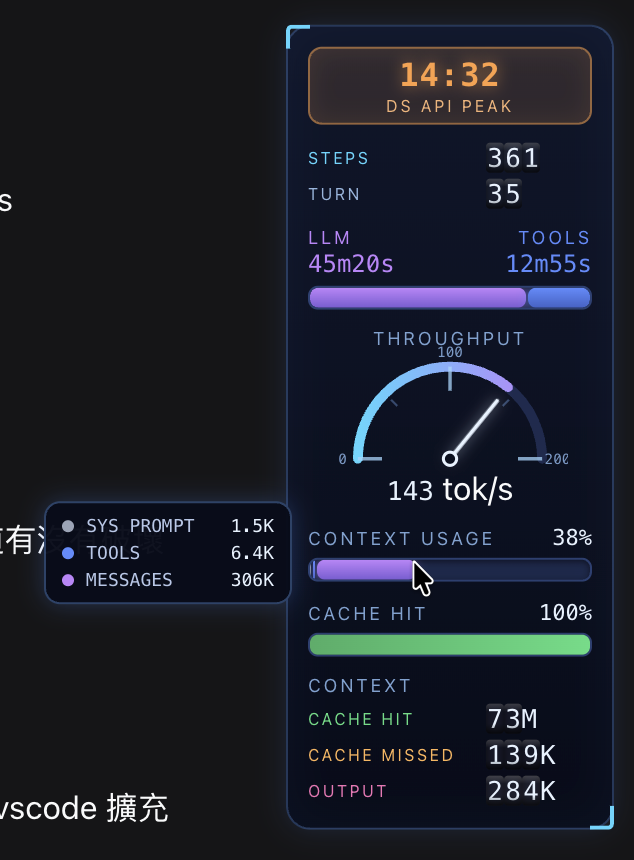

Hovering the CONTEXT USAGE bar pops up a tooltip with the token breakdown:

Responsive layout

The HUD adapts to the free space right of the chat column (measured live with a ResizeObserver, so sidebar drags, the details drawer and window resizes all count):

Tier	Condition (free space)	Shows
full	≥ 200px	Everything
mini	≥ 90px	Clock (short PEAK/OFF PEAK badge) + compact rolling rows (Step/Turn/HIT/MISS/OUT)
hidden	< 90px	Nothing (element stays mounted, display:none)

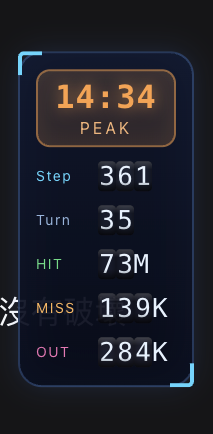

The mini tier in a narrow window:

Requirements

• DeepSeek Harness dsh (tested on 0.1.0-rc.6, macOS)
• pnpm (for plugin management)

Install

# from a local checkout
dsh plugin --profile web add /path/to/dsh-stats-hud

# or straight from GitHub
dsh plugin --profile web add https://github.com/lauytgary/dsh_hud

Then restart dsh web (loader entries are scanned at boot) and refresh the page. The package is installed as a link: dependency — after editing lib/client.js locally, only a restart is needed, no reinstall.

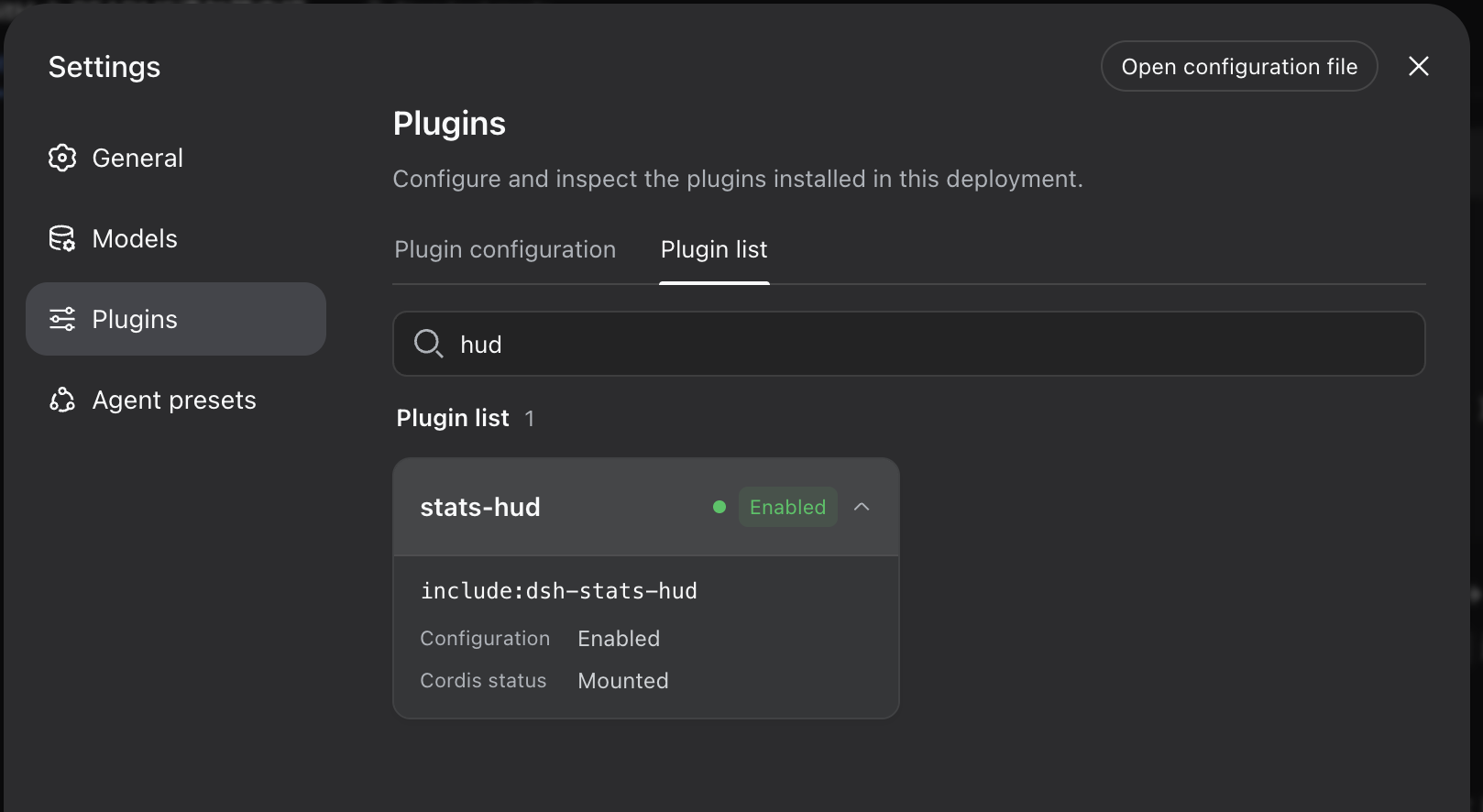

The plugin then shows up in Settings → Plugins:

Uninstall

dsh plugin --profile web remove dsh-stats-hud

How it works

• Registers into the conversation.composer.dock slot (id dsh-stats-hud, order 1) — only to receive the session-scoped hooks (useSession/useProjection); the panel itself is position: fixed, takes no layout space, and the stock stats line stays untouched.
• Data comes from the same projections the stock UI uses: useProjection("sessionStats"), useProjection("tokenUsage"), useProjection("contextPressure") and useProjection("contextBreakdown") — zero host-side changes.
• exports.inject = ["slots"] is mandatory: DSH's ctx is a strict proxy, and accessing an undeclared service throws (cannot get property "locale" without inject).
• The panel is pointer-events: none (click-through); only the CONTEXT USAGE bar re-enables pointer events so its hover tooltip works.

Files

dsh-stats-hud/
├── package.json          # dsh.bundle (patch layer) + dsh.client (browser entry)
├── cordis.patch.yml      # inserts the plugin into loader entries
└── lib/
    ├── index.js          # host-side no-op (pure browser plugin)
    └── client.js         # browser bundle: HUD components + slot registration

lib/client.js is a hand-written loader bundle (window.__ModuleLoader__.load) — no build step needed.

Tuning

All constants live in lib/client.js:

• Labels: the L object (all-English LLM terminology)
• Peak hours: LocalClock's bjMin >= 540 && bjMin < 720 (Beijing 9-12h) and >= 840 && < 1080 (14-18h), with bjMin = ((now.getTime() + 8*3600e3) / 60000) % 1440
• MissionRolling: rolling drums for steps/turns (no full scale)
• ChannelBar: segment ratio = llmMs / (llmMs + toolMs) (no cap)
• SpeedGauge's redline = 200 (initial; while (tps > redline) redline += 100 auto-scales)
• ContextUsageBar: segment colors and the ≥80% solid-red threshold; the hover tooltip reads systemTokens / toolsTokens / messageTokens from the contextBreakdown projection
• Rolling counter: DRUM (3× 0-9), DRUM_H = 15 (px per digit), RollingValue's carry/borrow formula and mount spin-up
• CSS: position:fixed; right:12px; tiers in tierOf(space) (≥200 full / ≥90 mini / else hidden) and the .gsh-root.gsh-* rules

Publishing to npm (optional)

# remove "private": true from package.json, then
npm publish
# users install with:
dsh plugin --profile web add dsh-stats-hud

License

MIT
